GSG provides high-quality thread gages, cylindrical gages, and calibration services. Their ASME-compliant gages ensure accuracy and reliability in demanding inspection environments.

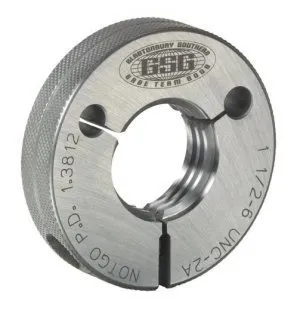

A thread ring GO gage checks the maximum minor diameter and the maximum pitch diameter size in a part, the NOGO checks for the part not to exceed the minimum pitch diameter size on a part. All GSG Thread Ring Gages are manufactured to ASME/ANSI B1.2 or B1.16M. Each thread ring gage is made of oil hardened Tools Steel.
The Reversible Plug Gage has the advantage that it can be reversed and used at the opposite end when one end becomes worn and goes out of tolerance. The gaging members are simple pins that can be removed from the handle by loosening the collet nuts at the ends.
Each end of the handle is color coded, green for GO and red for NOGO. Depth steps are available upon request. Available in Steel, Carbide and Chrome. Extra long members available. Gaging surfaces are hardened to Rc 58-62.

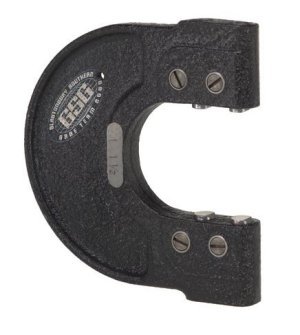

AGD Snap Gages offer a quick attribute method of checking an OD, groove diameter or width by having the GO and NOGO elements in line. Gaging surfaces are hardened, ground and lapped tool steel. Marking discs are supplied on all snap gages. Carbide anvils and sizes available upon request.
