OGP’s software platforms power their multisensor and video measurement systems with intuitive interfaces, advanced analysis, and automation tools. Built for accuracy and ease of use, the software connects seamlessly with OGP hardware to simplify setup, maximize throughput, and deliver reliable results.

Featured Products

OPG SOFTWARE

ZONE3 Metrology Software represents a totally new way of working with multisensor measurement systems and provides faster, easier, and more productive measurements than ever before. Its interface clearly displays relationships between parts, sensors, datum alignments, and machine accessories.

ZONE3 uses innovative features to automatically and effortlessly generate measurement routines resulting in faster programming and run times than was previously possible with other software packages.

OPG SOFTWARE

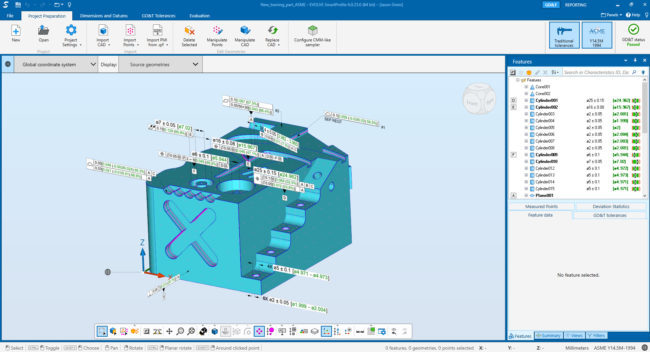

EVOLVE SmartProfile® is the world’s leading dimensional analysis software. SmartProfile provides guidance for adding or modifying part design tolerances. It combines measurement data with the CAD model of the part and automatically runs GD&T (ASME) and GPS (ISO) evaluations. Its rich set of tools allow engineers to analyze and solve complex manufacturing problems.

  • Eliminate results variability caused by using different evaluation techniques and/or metrology software.
  • Eliminate human error caused by incorrect interpretation and implementation of ASME Y14.5 and ISO 1101 standards.
  • Quickly assess part tolerances and processes to improve production.
  • Optimize enterprise resources by separating part measurements from the tolerance evaluation process.
OPG SOFTWARE

EVOLVE SPC is a full statistical process control software that can be used as either a standalone product with existing measuring systems or integrated into the EVOLVE Suite.

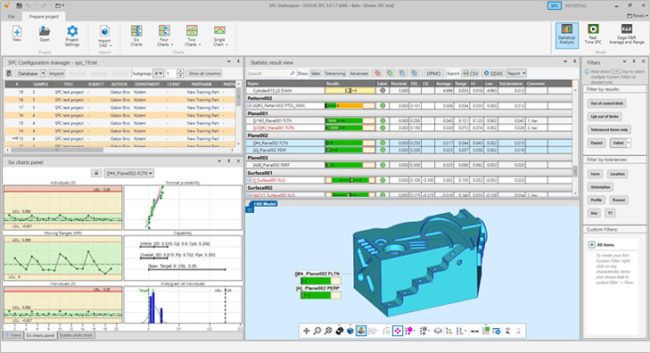

Information about every measured feature is viewable interactively in the 3D CAD model or in tables and graphs making it easy to visualize process variations by characteristic. Legacy measurement data can be converted to model-based data with a simple wizard.

EVOLVE SPC includes a powerful database, saving you the headache of separate database management.

ogp software

EVOLVE Design is Computer-Aided Engineering (CAE) tolerancing software that helps engineers apply correct GD&T (GPS) tolerances to their CAD models.

  • Apply functionally and syntactically correct GD&T in a 3D model
  • Proof your CAD model’s GD&T and get helpful guidance about changes
  • Learn from context-sensitive explanations that refer to the specific section of the standards
  • Eliminate waste and errors in manual transcriptions of GD&T

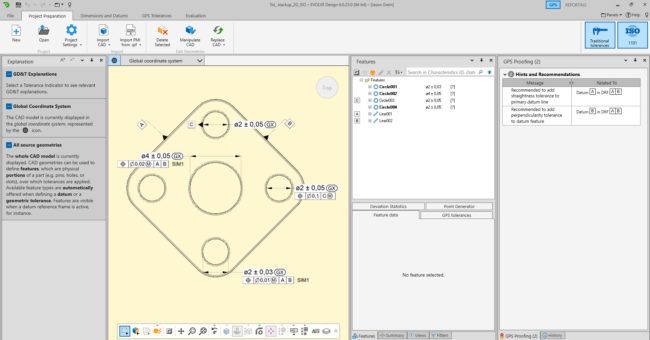

EVOLVE Design proofs your GD&T (GPS) tolerances on the model. It highlights potential tolerancing problems and provides recommendations through its explanatory systems that show relevant guidance based on the GD&T standard chosen.

The EVOLVE Design Tolerance Stackup and Point Generator tools allow for a better understanding of the impact of chosen tolerances.

OPG SOFTWARE

EVOLVE Manufacturing Represents Both GD&T and Functionality

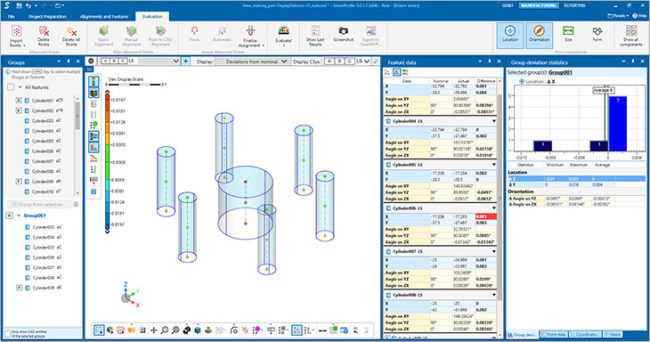

EVOLVE Manufacturing graphically compares measured results based on design or manufacturing datums producing proper manufacturing adjustments and how they impact GD&T tolerances. Understand why a part failed during the GD&T evaluation and which corrective actions can fix the manufacturing process.

Evolve Manufacturing is a powerful and unique 2D/3D tool which uses the same measurement point cloud data as the GD&T evaluation. This allows correlation of the GD&T results to feature deviations displayed in the manufacturing coordinate systems.
