OGP designs and manufactures multi-sensor metrology systems, video measuring machines, and optical comparators. Their advanced measurement technologies support industries requiring speed, accuracy, and flexibility in part inspection.
Since their debut in 1992, OGP® SmartScope systems have set the standard for fast, accurate dimensional measurement. As your local distributor, Innovative Measuring Systems (IMS) brings this benchmark technology to your shop floor—with expert guidance, integration, and support.
SmartScope® 3D Multisensor Systems combine optical, laser, and tactile sensors in one platform—delivering faster, more accurate measurements while reducing costs and setups. From shop-floor checks to automated Industry 4.0 environments, SmartScope adapts to your process.

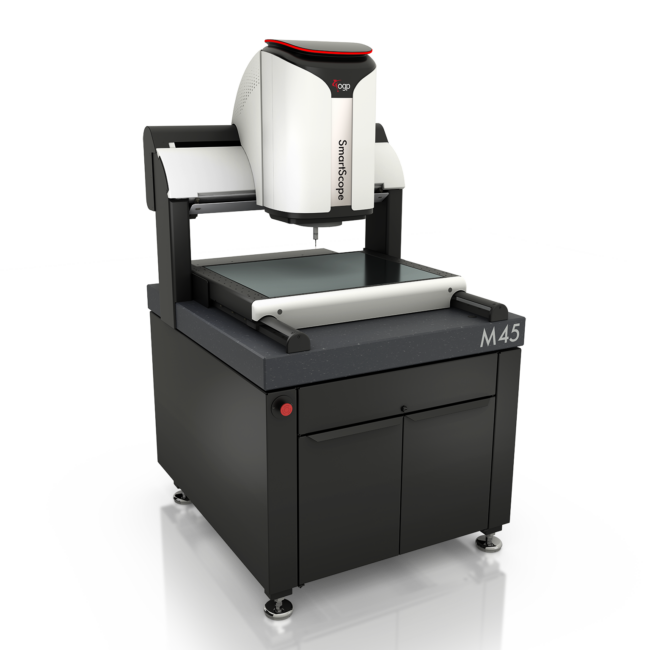

SmartScope® M-Series systems combine innovative advancements in optical technologies delivering an incredibly high-resolution image, providing users with exceptionally accurate measurement results – affording confidence to move at top speeds from line to line and part to part – for faster setups, shorter cycle times, and increased throughput.
SmartScope M-Series feature the patented IntelliCentric™-M Optical System: fully telecentric fixed lens optics and VIRTUAL ZOOM™ technology, paired with a high-density 20 MP digital metrology camera and a built-in electronic aperture, delivering an ultra-high-resolution image with low distortion – perfect for high-speed edge detection metrology.
SmartRing™ light is standard for the ultimate flexibility in surface illumination, along with an all-LED backlight and coaxial surface light.
A variety of optional tactile, laser, and advanced non-contact sensors make SmartScope M-Series systems the best multisensor measurement choice for leading manufacturers around the world.

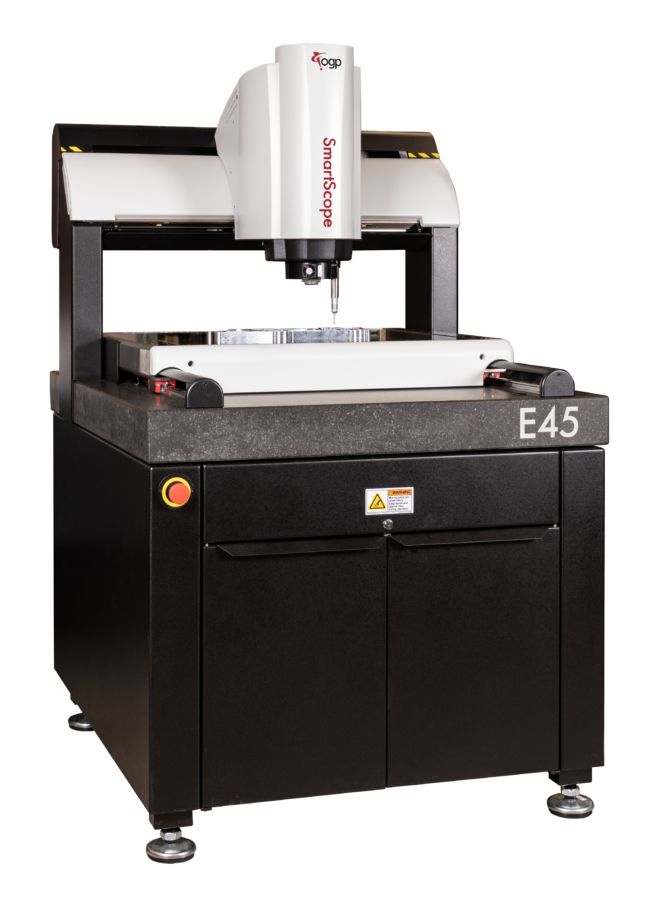

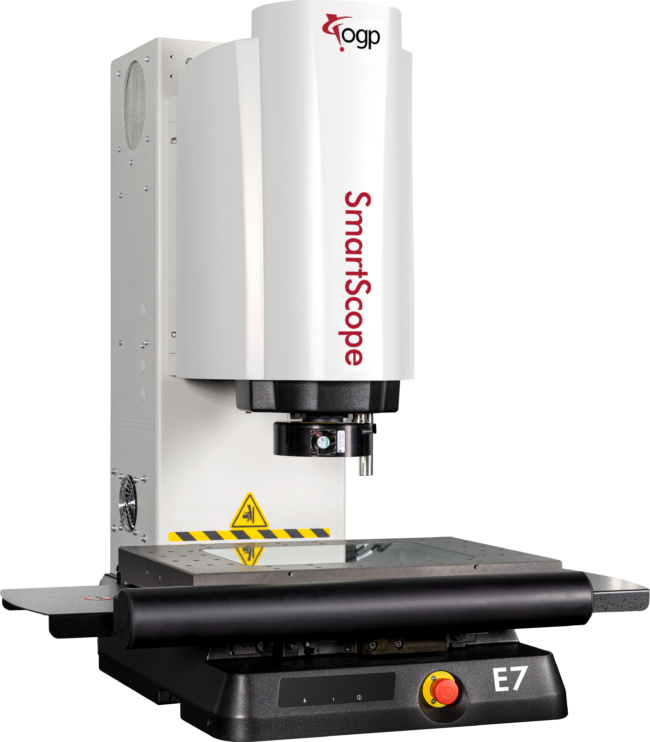

SmartScope E-Series
SmartScope E-Series Systems set the standard for 3-axis video measurement performance.
The fixed lens IntelliCentric™-E optical system and VIRTUAL ZOOM™ combine to provide a high-resolution image engineered for video edge detection metrology.
SmartRing™ light is standard for the ultimate flexibility in surface illumination, along with an all-LED backlight and coaxial surface light.
Optional TP-20 and TP-200 touch probes make SmartScope E-Series systems fast, accurate, and flexible multisensor metrology systems.
SmartScope® Quest™ systems are designed to provide the best performance and the highest accuracy in three-dimensional multisensor measurement. The patented TeleStar® 10:1 zoom lens is completely telecentric and automatically calibrated throughout the zoom range, for distortion-free, high fidelity images. Generous working distances make it easy to measure large parts. Multiple illumination sources, including substage profile light, coaxial surface light, and the SmartRing™ green LED oblique illuminator are standard on all Quest systems.
The combination of sensor tools offered by SmartScope Quest allows complete measurement of complex parts in a single setup to handle the toughest measurement challenges.

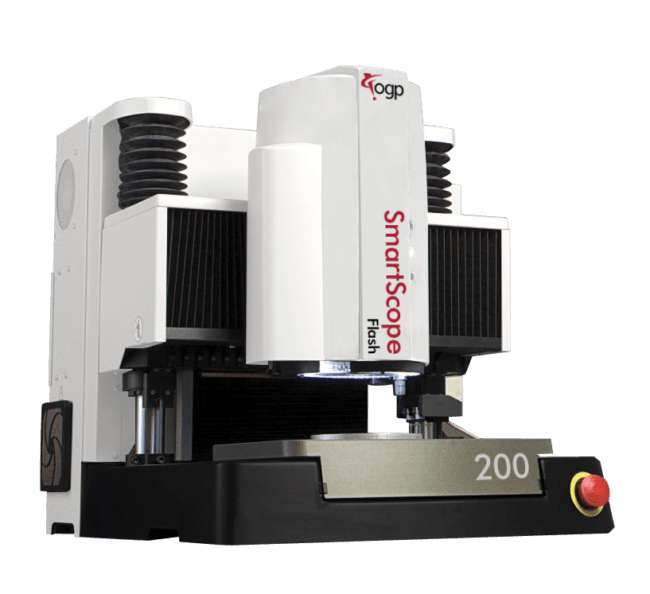

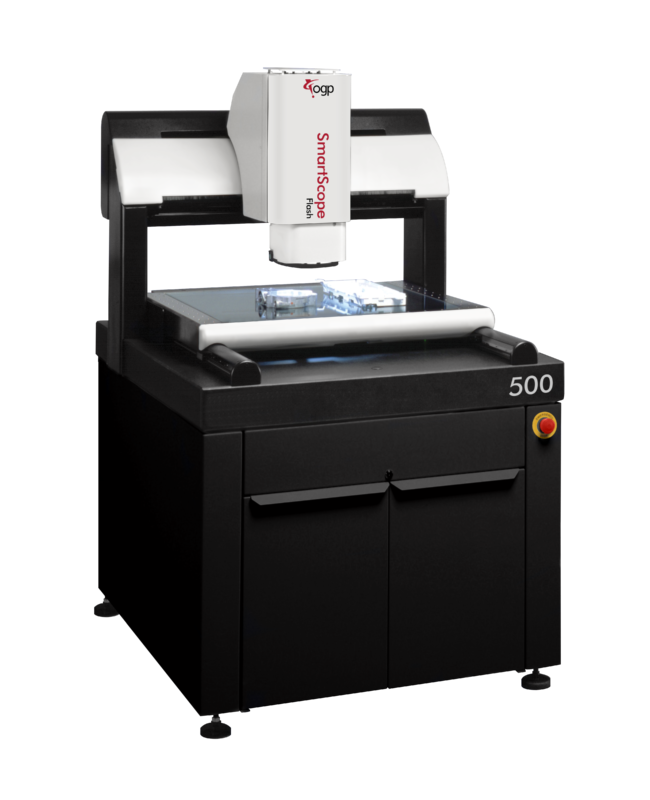

SmartScope® Flash™ 3D Multisensor Measurement Systems are versatile “all-in-one” multisensor coordinate measuring systems built to handle a wide variety of measurement tasks. The Flash product line offers the largest range of XYZ machine travels, from 200 x 200 x 150 mm to 650 x 660 x 400 mm, as well as models with expansive XY travels up to 1500 x 1500 mm, to easily accommodate very large parts.
A 12:1 zoom metrology lens features patented AccuCentric® that auto-compensates itself after every magnification change. Flash offers a range of innovative illumination sources for video measurements. SmartRing™ light is standard for the ultimate flexibility in surface illumination. All LED illumination including backlight, ring light and coaxial surface light-and an optional grid protector for focusing on low contrast images.
SmartScope Flash can be configured as an economical yet capable multisensor metrology system, with numerous combinations of touch probes, scanning probes, micro-probes, and lasers. ZONE3® 3D CAD-based metrology software makes every Flash model a powerful video measuring system.
SmartScope Flash systems feature an ideal price-to-performance ratio and are extremely popular, with thousands in service worldwide. SmartScope Flash systems are the best choice in automatic general-purpose, coordinate measuring with multisensor dimensional measurement.
SmartScope® SP systems are designed for optimum scanning probe performance. Starting with a rigid base structure, the system mechanics are designed to optimize dynamic data acquisition critical to scanning probe performance. Most performance specifications for SP models are according to ISO 10360 standards.
SmartScope SP optics combine a wide field objective lens, digital zoom, and 5 megapixel monochrome digital camera, providing a distortion-free 16 mm diagonal field of view at low zoom, with high resolution at high zoom. Careful design of both optics and illumination sources ensure accurate imaging at all zoom levels.
SmartScope SP systems are available in a range of XYZ machine travels. The SP25M scanning probe is included as standard with all SmartScope SP models. The optional TeleStar Plus laser offers very long working distance with sub-micron resolution. The on-axis and through-the-lens design allows laser measurement over the full measuring range of the system.

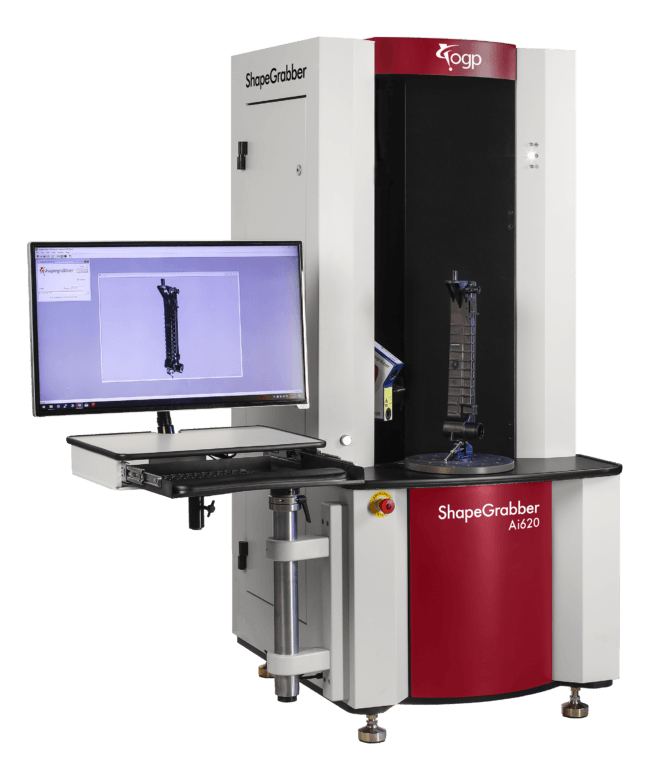

ShapeGrabber 3D Laser Scanning systems deliver fast, accurate and automated 3D measurement. The ShapeGrabber is ideal for measuring complex shapes such as molded plastics, castings, stampings, and machined parts and that are time-consuming, costly, and difficult to measure. Using multiple motion axes, ShapeGrabber laser scanners eliminate the need for software alignment and registration and ensure fast, accurate results.
ShapeGrabber automated scanners are well suited for situations in which speed and ease of use are important. These systems scan parts in a wide variety of materials, colors, and finishes and excel in rapid prototyping, manufacturing, quality control, and reverse engineering applications.
All ShapeGrabber 3D Laser Scanning systems share the ability to produce detailed surface characterizations of complex parts, quickly, and accurately. They are all easily programmed for repetitive part measurements, with no need for software alignment and registration. All ShapeGrabber systems collect accurate, high density point data, and provide reports of results, including GD&T.
ShapeGrabber systems are available in three models to match part size and configuration.
SNAP™ Large FOV Video Measurement Systems are compact measuring systems that integrate perfectly from the shop floor, to the lab, or as part of an automated work cell. Rugged construction and an open work envelope make SNAP easy to implement in virtually any manufacturing setting.
All SNAP systems feature large field of view optics, high resolution cameras, and lighting custom-designed to optimize the image, creating a complete optical system. Camera, optics, lighting, and platform are matched and tuned for optimum performance.

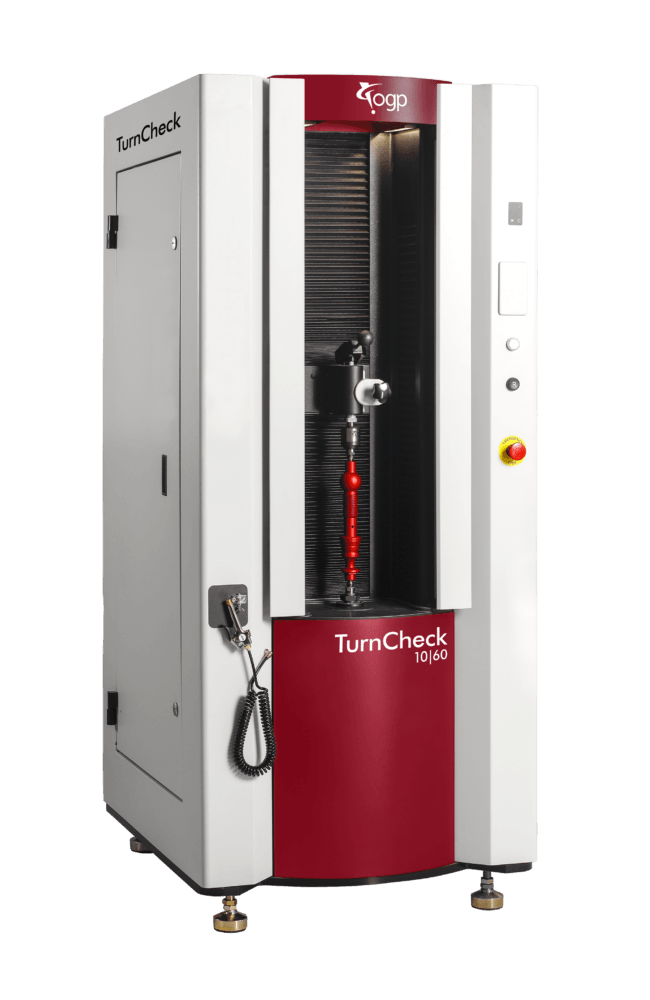

TurnCheck™ Series-10 systems offer a fast, easy way to measure shafts, cylinders and other turned, ground or extruded parts. Just place the part and press GO.
TurnCheck Series-10 systems are precision optical measuring instruments designed for shop floor environments. TurnCheck systems are rugged and reliable, accommodating parts up to 175 mm diameter by 800 mm in length. TurnCheck will scan and measure a part in seconds using its telecentric, large field of view optical system. With 100 mm wide field of view and vertical range of 400, 600 or 800 mm, TurnCheck Series-10 systems can handle just about any turned or ground part. TurnCheck software allows easy measurement of diameters, lengths, distances, angles, radii, form, position, cylindricity, and runout – and can output point data for external analysis.
The movable tailstock assembly is designed to be easily operated with one hand for precision mechanical alignment of the workpiece. Additional optional workholding kits that fit into the spindle accommodate workpieces that do not have centers. Granite base support for rotary provides a rigid base and isolates vibration.
Contact IMS to schedule an on-site demo or sample-part run:
