Q-Mark manufactures styli and accessories for CMMs, vision systems, and scanning probes. Made in the USA, their products are known for durability, precision, and fast delivery.

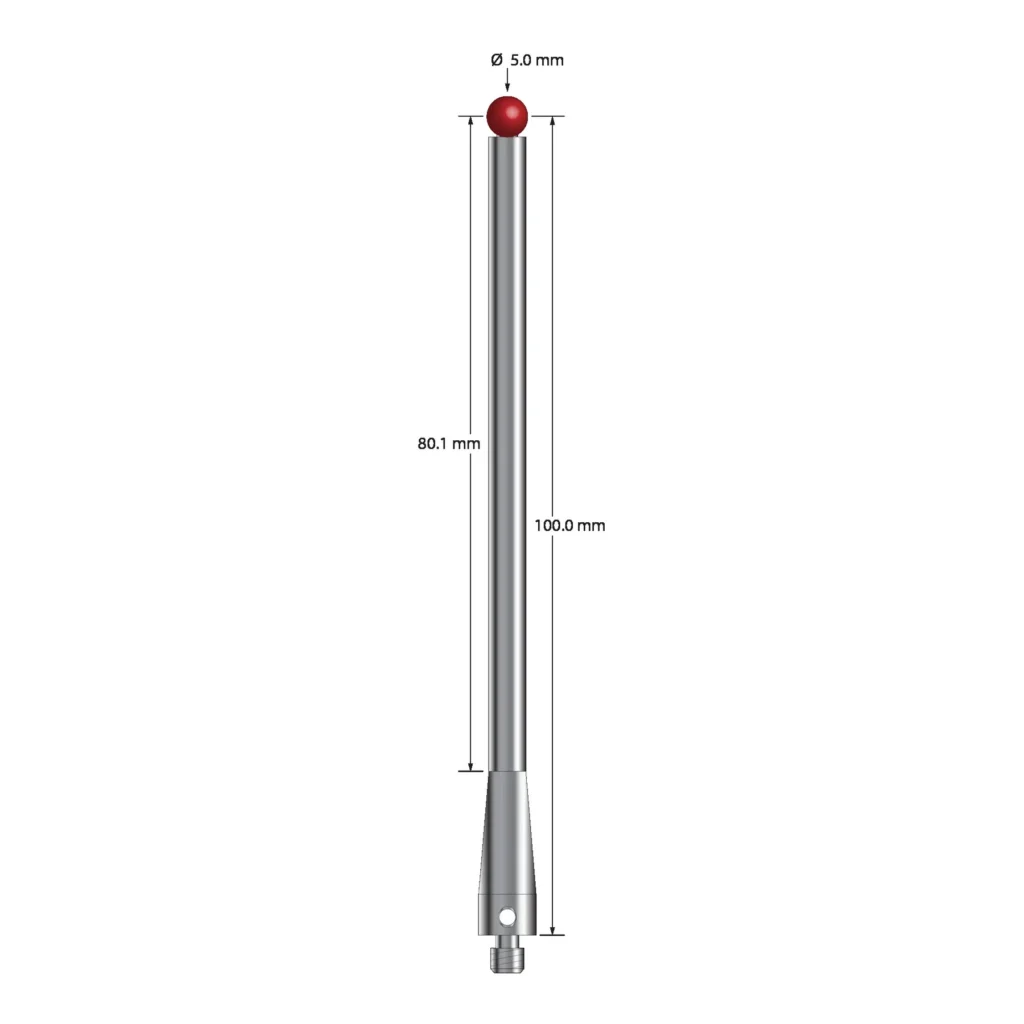

M4 stylus with 5.0 mm ruby ball, 4.5 mm diameter stainless steel stem, and 7.0 mm diameter stainless steel base. Stylus length to ball center is 100.0 mm. Stylus weight is 15.75 grams.

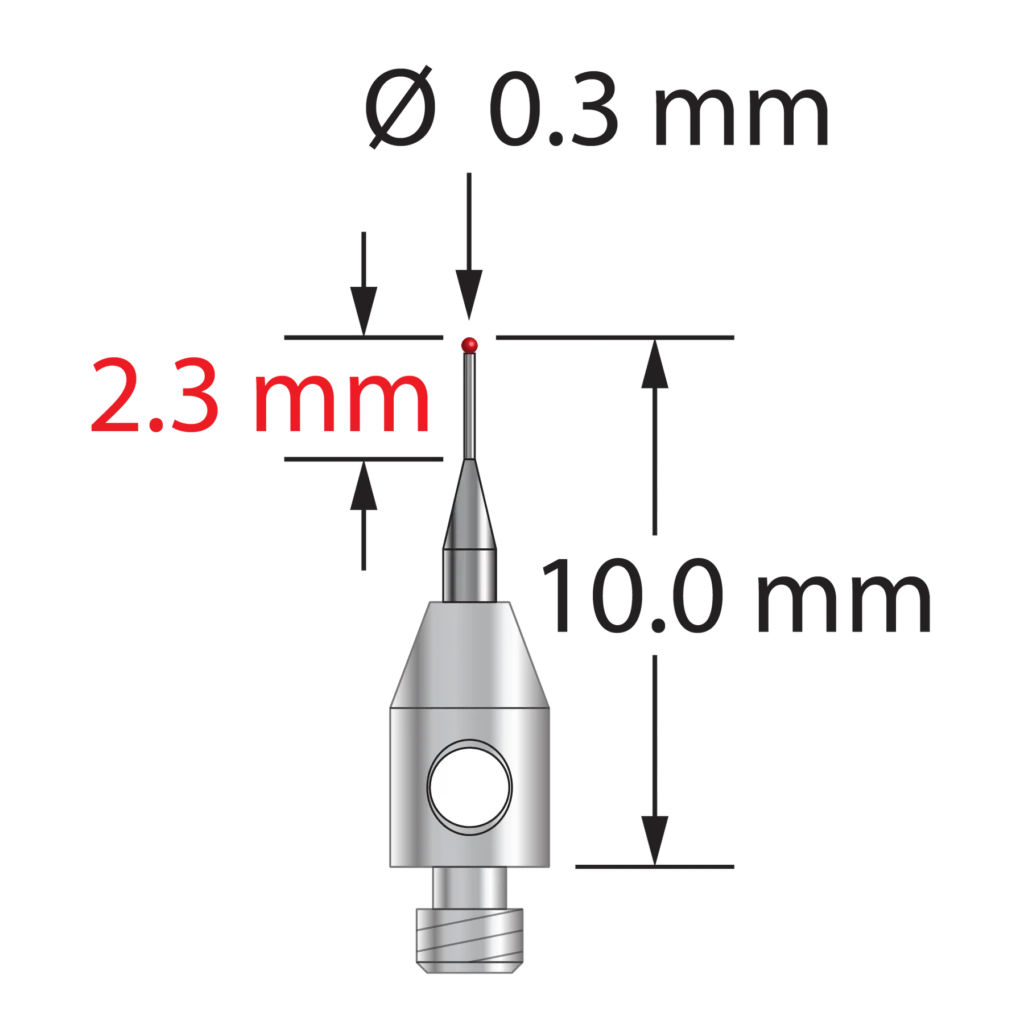

M2 stylus with 0.3 mm diameter ruby ball, tapered carbide stem, and 3.0 mm diameter x 5.0 mm long stainless steel base. Minor stem diameter is 0.2 mm, major diameter is 1.0 mm. Overall stylus length is 10.0 mm. Stylus weight is 0.21 gram.

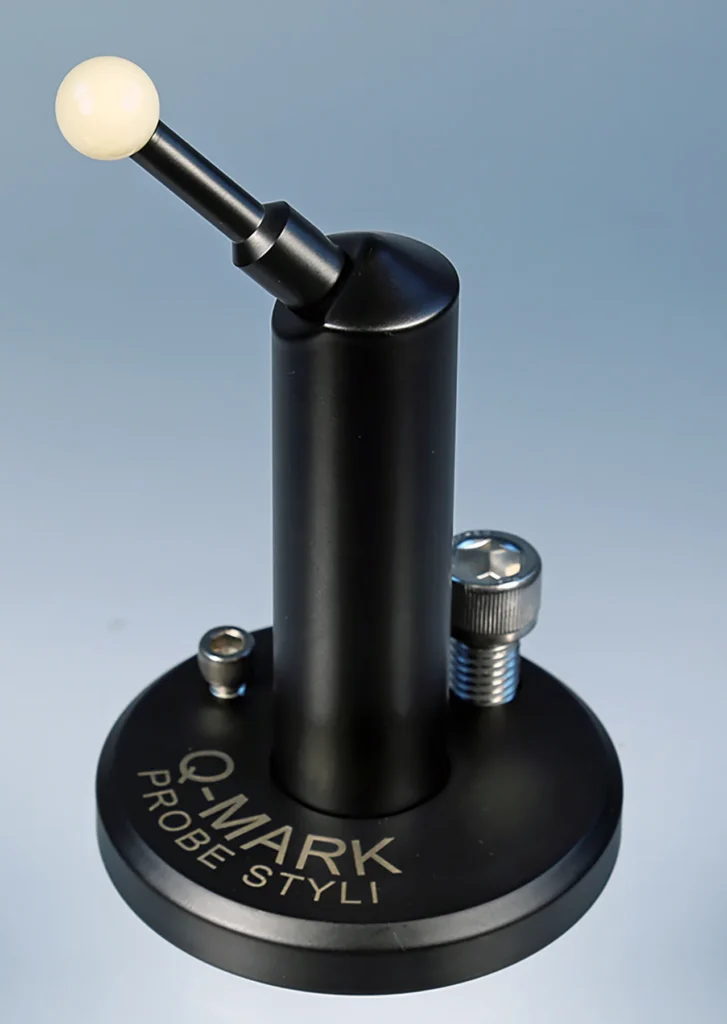

Stainless steel base for calibration spheres, 45 degrees. 85.0 mm diameter base x 112.0 mm high post. Accepts all calibration spheres on our website. Includes stainless steel M12 cap screw for mounting to CMM table. Fits most threaded sub-plates.

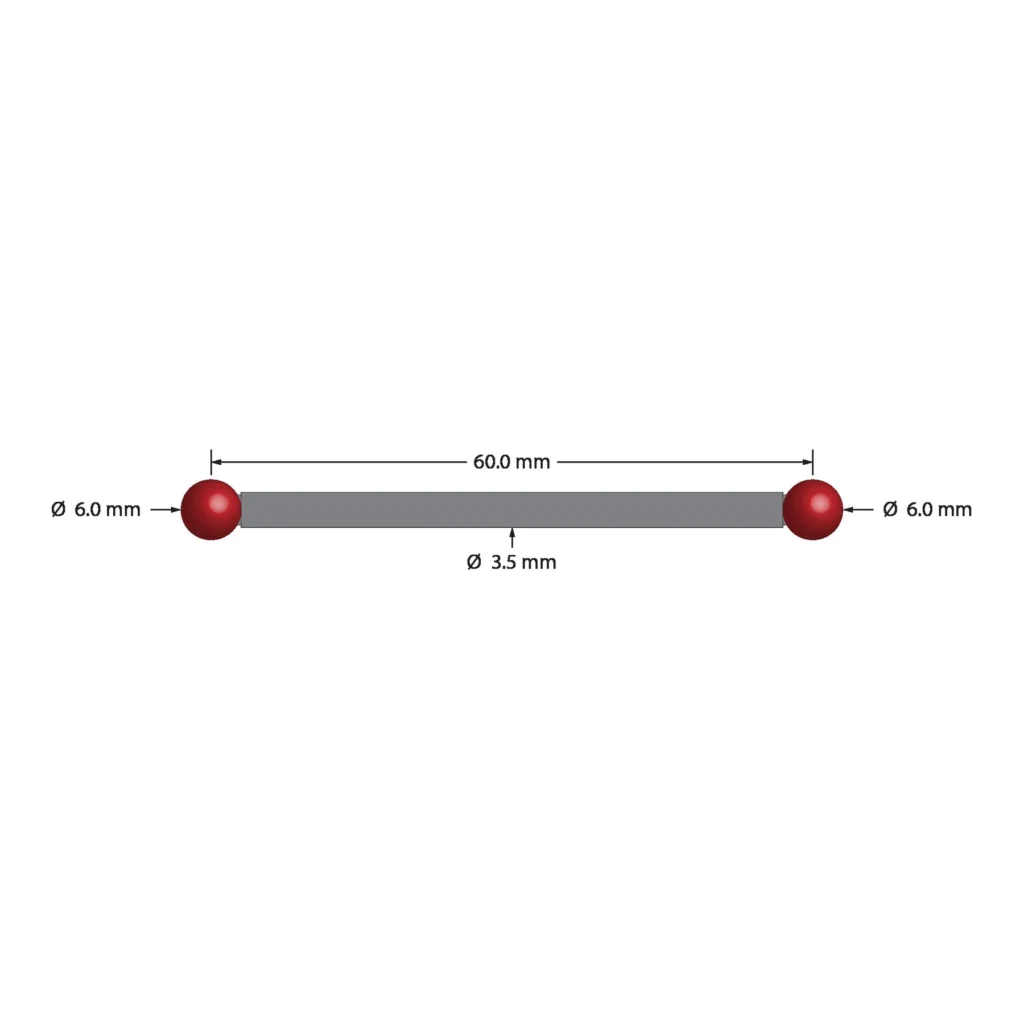

Double ended artifact used for computed tomography (CT) calibration. Two 6.0 mm diameter ruby spheres mounted on a 3.5 mm diameter carbon fiber strut. Center-to-center distance between spheres is 60.0 mm. Weight 1.71 grams.
